Overview of Insert Mold
An insert mold is a special type of mold used in insert molding. It is designed to hold metal or other parts in place while plastic is injected around them. The result is one strong, combined part.
An insert mold is typically made of several segments. Each part has its unique purpose, and they contribute to the overall insert molding process. The first is the mold base, which is the main frame of the mold. It holds all the parts together and gives support during molding. The second part is the cavity plate, which shapes the inside details of the part. It works in conjunction with the cavity plate to form the complete product.
The insert holder, on the other hand, holds the insert in place. It ensures the insert does not move when the plastic flows around it. The cooling system carries water or oil to cool the hot plastic. It typically helps the molded part harden quickly and maintains process stability. Finally, you have the ejection system. It pushes the finished part out of the mold after it has cooled. Once it is moved out, your insert mold is ready for the next cycle.
An insert mold is ideal for producing a wide range of valuable products. For example, electrical connectors, medical devices, and automotive switches are noteworthy. The insert mold ensures the insert remains in the correct position. Without the mold, the plastic would not form correctly around the insert.
Explore Applications
Our Insert Mold Manufacturing Capabilities
To create the highest-quality insert molding products, you need the highest-quality insert mold. And that’s only possible with a reliable insert mold manufacturer. Choose GBM as your trusted insert mold manufacturer. Our injection molding capabilities are beyond your expectations. We invite you to visit our production lines, and we hope you will find that we are professional, disciplined, and, of course, reliable.
Precision Mold Design
We design each insert mold with the assistance of expert engineers and modern tools. Every detail is accurate, ensuring high-quality results.
CNC Machining & EDM
Our CNC machines and EDM systems cut steel with high precision. Thus, GBM can guarantee durable and precise molds.
Tool Steel Expertise
We use premium tool steels. You can also choose from a variety of popular options. We also consider customers’ suggestions.
Mold Flow Simulation
GBM runs full mold flow simulations. Virtual simulation helps reduce errors. It also ensures smooth production of insert molding.
Multi-cavity & Complex Molds
GBM is capable of producing a wide range of insert molds. It includes multi-cavity and complex insert molds. This way, we can create more precise parts in less time.
Quality Testing & Validation
Each insert mold undergoes rigorous testing. We check size, fit, and durability before final delivery.
Why Choose GBM Mold For Insert Mold Manufacturing?
Selecting the proper insert mold manufacturer is crucial for achieving optimal results. At GBM, we combine modern technology with expertise. Our team continuously focuses on quality, precision, and customer satisfaction. We make each insert mold with care. Each mold provides a long-lasting life and supports your success.
Expert Mold Engineering
With over two decades in precision manufacturing, our expertise ensures superior results for every project.
Rapid Turnaround
Our efficient processes and dedicated facilities provide industry-leading production times without compromising quality.
Advanced Technology
State-of-the-art equipment and continuous innovation keep us at the forefront of insert molding capabilities.
Quality Assurance
Rigorous testing and quality control standards ensure every product meets precise specifications and performance requirements.
Full-Service Solutions
From design and engineering to production and finishing, we provide end-to-end manufacturing support.
Industries We Serve
GBM molds are very flexible. You can use them for a variety of projects. Our molds support high precision, long life, and reliable services. At GBM, we do design and manufacture both. We also support custom molds for complex components and demanding situations.
Automotive
Insert molds are widely popular for auto connectors. Besides, you can also use them for engine sensors, switches, and housings. Besides, you can also use it to make brackets, steering, and safety parts.
Medical Devices
Insert molds are used for surgical handles, diagnostic housings, catheters, and syringes. GBM molds ensure clean, precise, and reliable tools. It meets strict medical standards and safety requirements.
Electronics
Insert molds are used for various electronic products. USB connectors, cable assemblies, and protective casings are noteworthy. GBM molds, in particular, pay close attention to stability, durability, and accuracy.
Aerospace & Defense
Insert molds are widely popular for auto connectors. Besides, you can also use them for engine sensors, switches, and housings. Besides, you can also use it to make brackets, steering, and safety parts.
Consumer Products
Insert molds are used for toothbrush handles, fasteners, electronic gadgets, and various parts of home appliances. GBM molds create high-quality products with strong inserts.
Industrial Equipment
Insert molds are also used for power tool housings, machinery switches, connectors, and pump parts. It is ideal for delivering long-life, durability, and strength for tough industrial use.
Insert Mold Project Workflow
An insert mold is a key component in producing various metal insert products. The quality of the mold in this case is crucial for ensuring the best quality final products. At GBM, we ensure that each injection mold is professionally designed and created. GBM insert molds are durable and can securely hold inserts in place correctly.
The GBM insert mold-making process strictly follows a set of steps. Each step ensures that every mold meets high standards. From the consultation to final delivery, we control every detail. Each insert mold we produce is designed to provide a long life. Of course, we never compromise on precision results. We generally specialize in the automotive and medical industries. However, we also offer custom solutions for other sectors.
Consultation & Part Analysis
Everything starts with the discussion. GBM receives your request through email. Then, it is passed to the engineering department to create a quotation. Before making the quotation, GBM completes all necessary discussions with you. Based on the discussion and your project requirements, we will provide you with a quotation.
During the discussion, GBM engineers study the part design and function. Every detail is checked for compatibility with insert molding. We also look at material choices and insertion placement. This step typically helps us avoid errors and reduce future costs. By reviewing the part early, GBM ensures the injection mold will support stable and repeatable results.

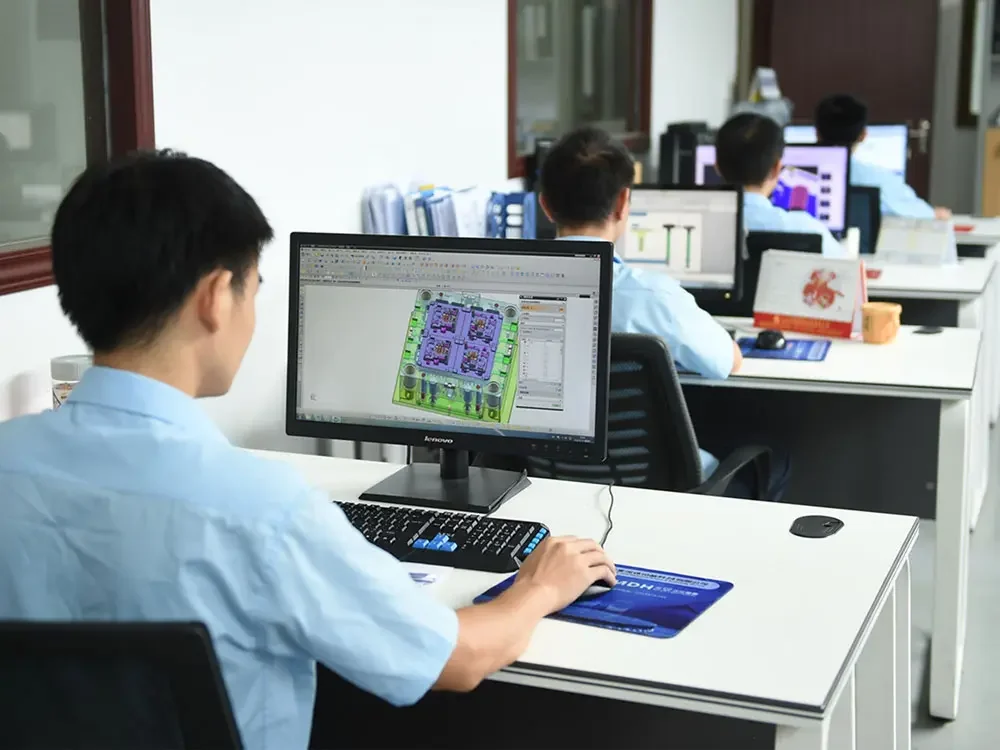

Custom Mold Design
After you approve the quotation, GBM engineers create a detailed mold drawing. It provides detailed information on sizes, various cavities, sections, cooling, and ejection systems. We will also make a 3D model of the insert mold.
Professional and expert engineers carefully check the GBM mold design. During the process, we might ask you various questions regarding the project. We call it EQ or Engineering Questions. To ease our communication, we can create a WeChat or WhatsApp business group. You can freely send messages at any time. Our engineers and salespeople will all be in that group, answering all your questions.
Mold Flow Simulation & DFM Report
One of the crucial steps of an insert mold project is mold flow simulation and DFM. This stage helps us confirm the mold design before it is machined. Mold flow simulation illustrates how plastic will flow within the injection mold.
The mold simulation predicts filling, pressure, cooling, and possible defects. DFM, or Design for Manufacturing, checks if the design is practical and efficient. Together, they reduce risks and improve quality. At GBM, our engineers use this step to refine the insert mold. It ensures smooth insert molding production.

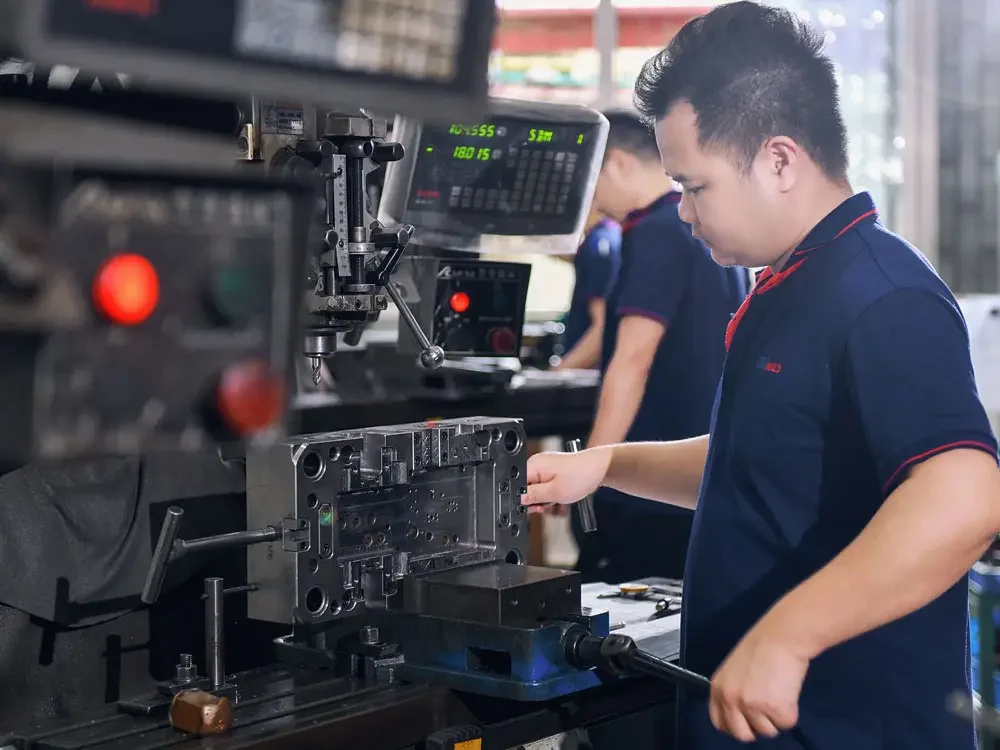

Tool Steel Selection & Machining
The right material is essential for mold durability. GBM selects tool steel based on part requirements and production volume. In this case, most customers typically choose P-20, H13, S-7, and 420 SS.
Once selected, we begin the precision machining process. CNC machines, EDM, and grinding equipment are used to achieve micron-level accuracy. GBM engineers check every component during machining to ensure a perfect fit. Correct steel and machining improve mold life and injection molding performance.

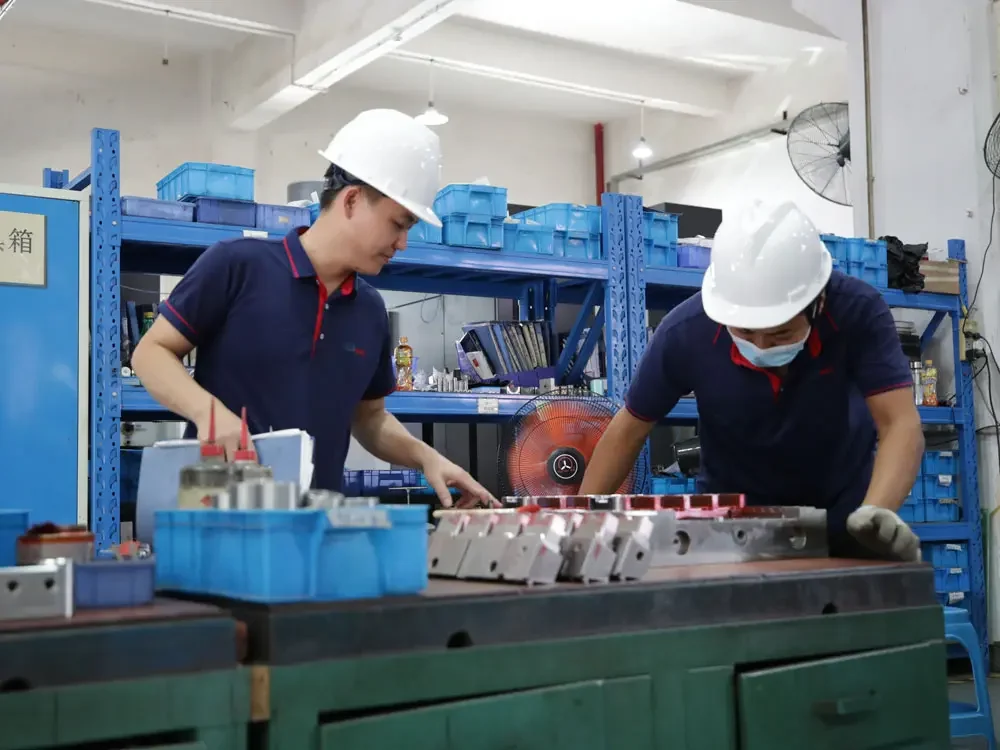

Assembly & Precision Fitting
After machining, GBM assembles the mold components. Cores, cavities, insert holders, and cooling systems must be fitted together precisely. GBM Engineers carefully check alignment, clearance, and surface finish.
In insert molding, even slight misalignments can cause defects. Our skilled technicians polish and adjust molds where necessary. The assembled mold must close correctly and securely hold the inserts in place.

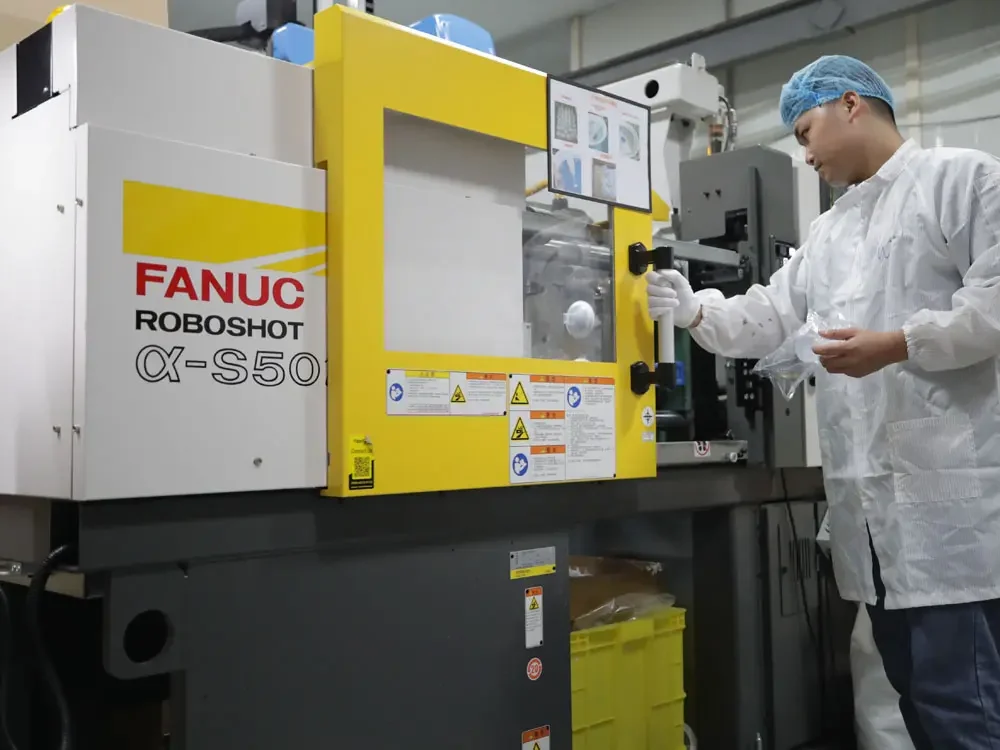

Trials & Validation
Once assembled, GBM insert molds go through various tests before delivery. During testing, we insert it into an injection molding machine for trial runs. We typically check for part quality, cycle time, insert positioning, and surface finish.
Trial runs typically verify that the mold works correctly in insert molding production. Any needed adjustments are made at this stage. You can receive trial samples for review and approval. This step always reduces risk and ensures confidence in the final product.

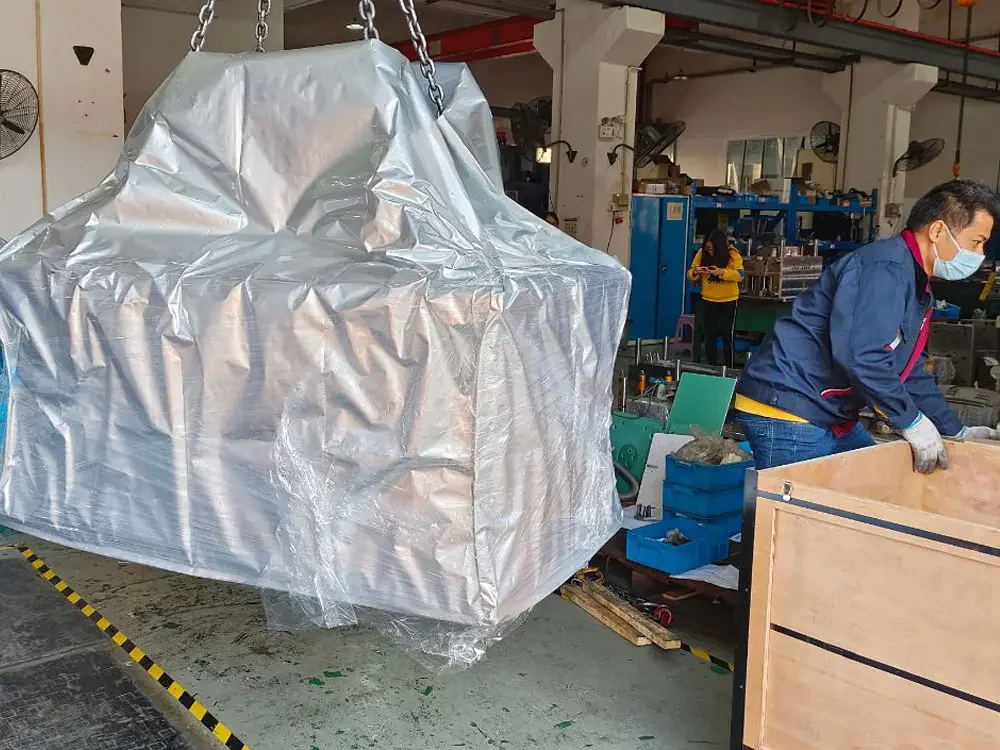

Final Mold Delivery & Support
Once validation is complete, GBM prepares the mold for delivery. Before that, we clean, protect, and pack it carefully. We include various necessary documents with the delivery. It might consist of material certificates, DFM reports, trial records, and other requested documents.
GBM services continue after delivery. We offer installation support, technical assistance, and maintenance advice. GBM insert molds are designed to last millions of cycles. If you take good care of the mold, you can always ensure consistent results.
Insert Molding Service
At GBM, we also provide professional insert molding services. Our factory features a range of injection molding machines. We will utilize your insert mold to produce a range of insert molding products. GBM has a dedicated injection molding production line for each type of product.
Insert molding is the process of combining metal inserts with plastic. The inserts are typically placed inside the injection mold before plastic is injected. This process creates strong, precise, and very durable parts. Our insertion molding service is ideal for complex components that require both plastic and metal components.
At GBM, we typically produce a wide range of products. Insert molding products from automotive, medical, electronics, aerospace, and consumer industries are all available at our factory. Some common products we have already produced are connectors, switches, sensors, housings, and handles. GBM insert molding services consistently deliver high-quality and repeatable results for mass production.
The GBM team controls every step of the process. From insert placement to final check, we ensure accuracy. Each part produced at GBM doesn’t leave the factory without passing the quality control inspection.
If you choose to make insert molding products at GBM, you can save a significant amount of money. You don’t need to invest in an expensive setup or consider labeling or surface finishing. GBM is an in-house production facility that can help you make market-ready products.
Looking for a Reliable Insert Mold Manufacturer?
GBM designs and builds high-quality molds for insert molding projects. Our insertion molds are precise, durable, and designed for long-lasting use. Request a free consultation today and start your custom insert mold projects with GBM.
